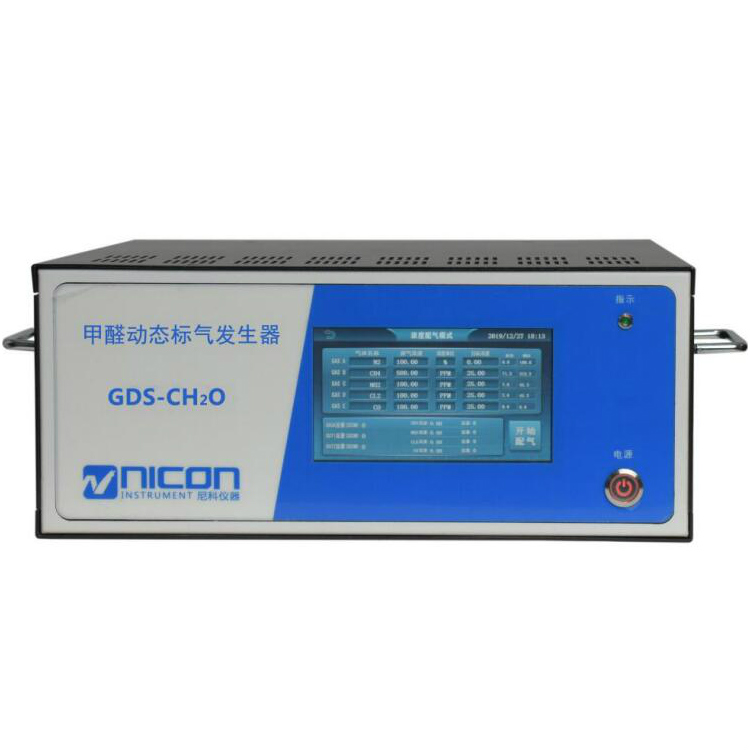

    Formaldehyde dynamic gas distribution system

    I. Name of instrument: formaldehyde dynamic gas distribution system

    II. Instrument model: GDS-CH2O

    III. Manufacturer: Nico Instruments

    IV. Introduction

    GDS-CH2O formaldehyde dynamic standard gas generator meets the verification regulation of formaldehyde gas detector
    (JJG1022-2016). The system adopts trimethylene diffusion cracking system and dynamic gas distribution system
    Formaldehyde standard gas generation.
    The main engine has built-in gas mass flow controller, permeation tube furnace, permeation tube, electrical components and measurement and control software.
    Triformaldehyde diffusion tube contains standard material certificate, dynamic gas distribution system uses the current international advanced measurement
    Quantity and control technology, stable and reliable equipment, high preparation accuracy. Gas distribution principle is mass mixing method, core component
    It is a gas mass flow controller, which is widely used internationally and traceable. system is configured with
    Two-channel gas mass flow controller can produce formaldehyde standard gas with different concentrations in real time.

    V. Technical parameters of the instrument:

    1. It must meet the requirements of Verification Regulation for Formaldehyde Gas Detector (JJG1022-2016).

    2. Triformaldehyde diffusion tube must contain standard substance certificate; its expanded uncertainty: 2.1%

    3. Formaldehyde gas concentration range: 0~1.5 mol/mol

    Formaldehyde gas expanded uncertainty: 2%

    5.& nbsp;* Small Resolution: Gas Distribution * Small Concentration: 10 ppb

    6. Adopt permeation diffusion principle and high-precision mass flow mixing method

    7. Core component flow controller: adopt American original Parker MFC flow

    8. Output flow range: 5000 ml/min(non-standard products, customized according to needs)

    9. Gas input pressure: 0.4 MPa

    10. Communication mode: WIFI/INTERNET/RS232

    11. Adopt unique patented gas mixing technology PT-GDMS

    12. System display: 7-inch LCD touch screen

    13. Operating temperature: 5℃-40 ℃

    14. Power requirements: AC220V 50Hz

    15. On-site installation and commissioning and personnel training shall be provided.

     VI. Environmental conditions

    1. Ambient temperature: (0-45) ℃

    2. Relative humidity: 80%RH

    VII. Configuration list

    1.& nbsp;GDS-CH2O Host

    2. 5 permeable tubes

    3. 5 PTFE tubes 1.5 meters long

    4. 2 stainless steel pressure relief valves

    5. 1 aluminum carrying case

    6. operation instruction

    7. warranty card

    8. certificate

    9. Provide calibration certificate of China Institute of Metrology

    10. Supply cycle: 6 - 8 weeks
